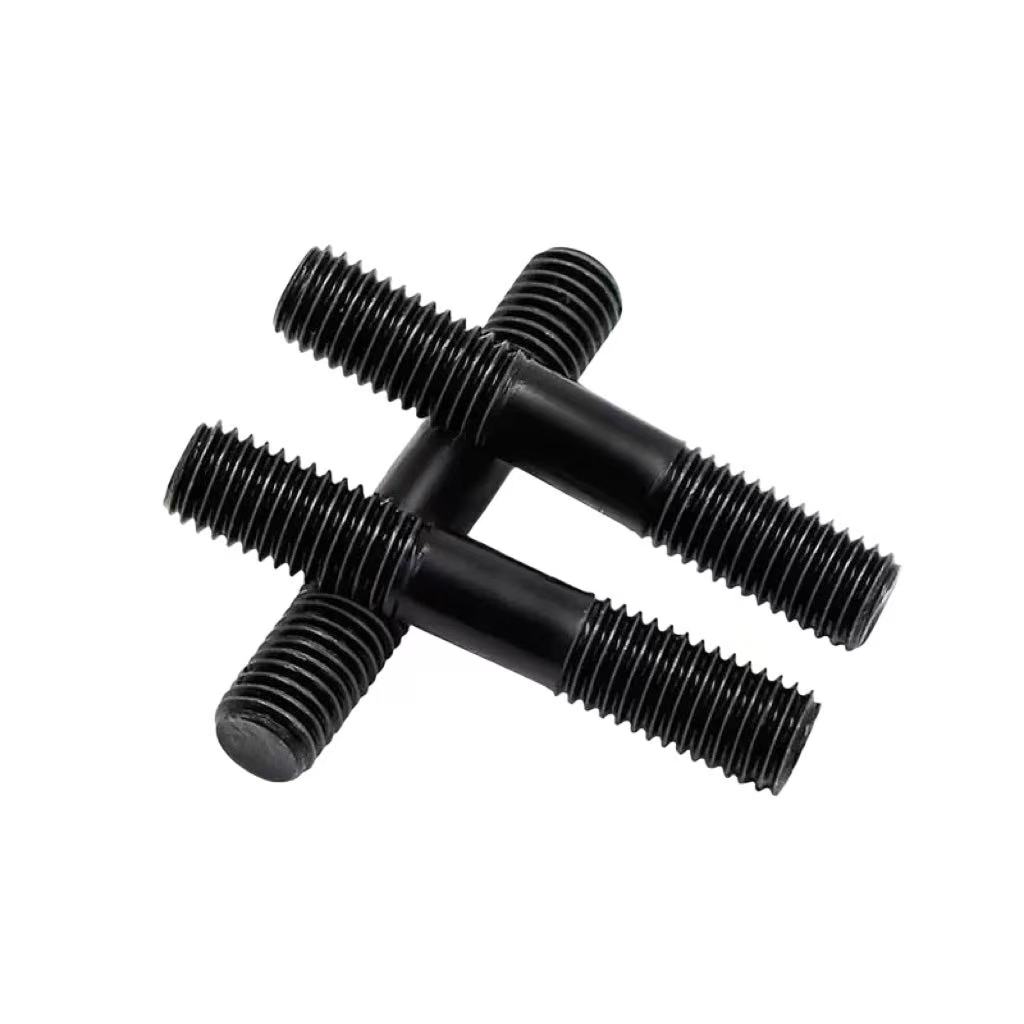

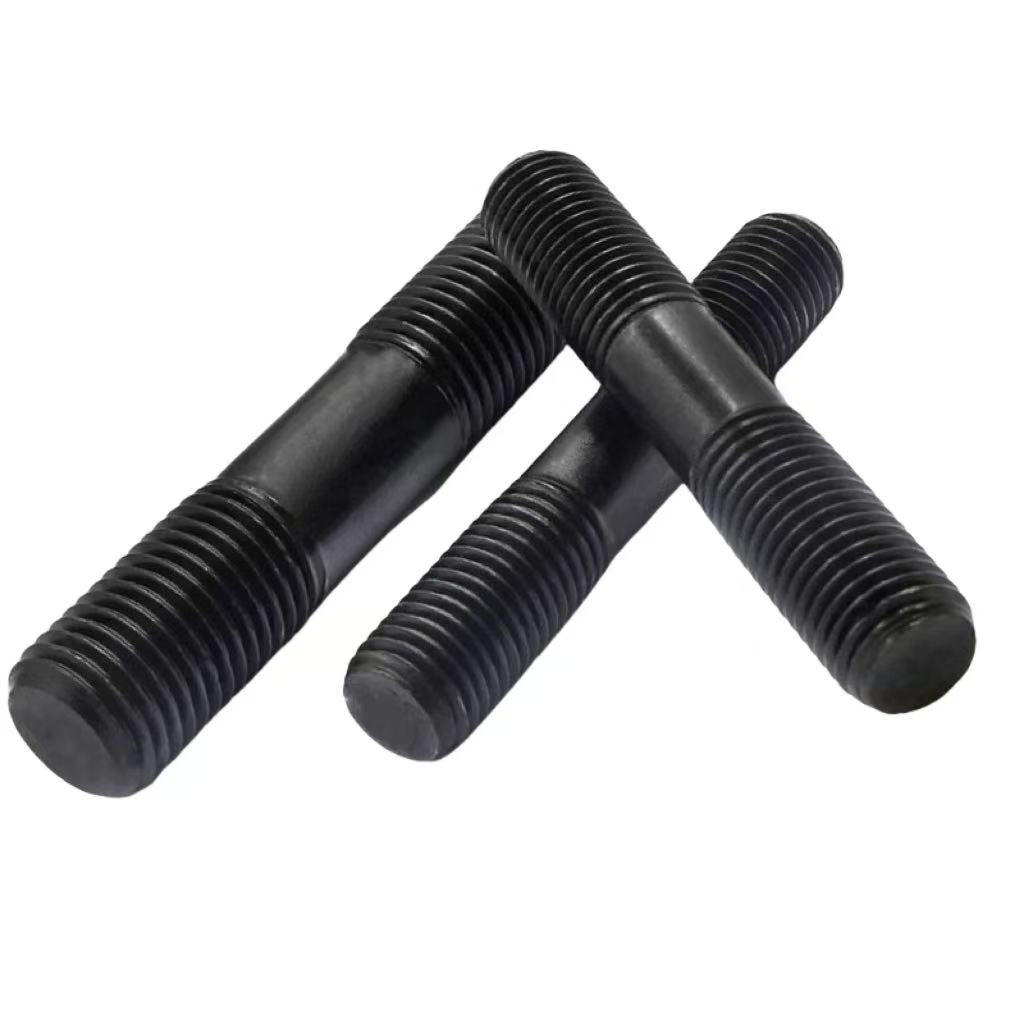

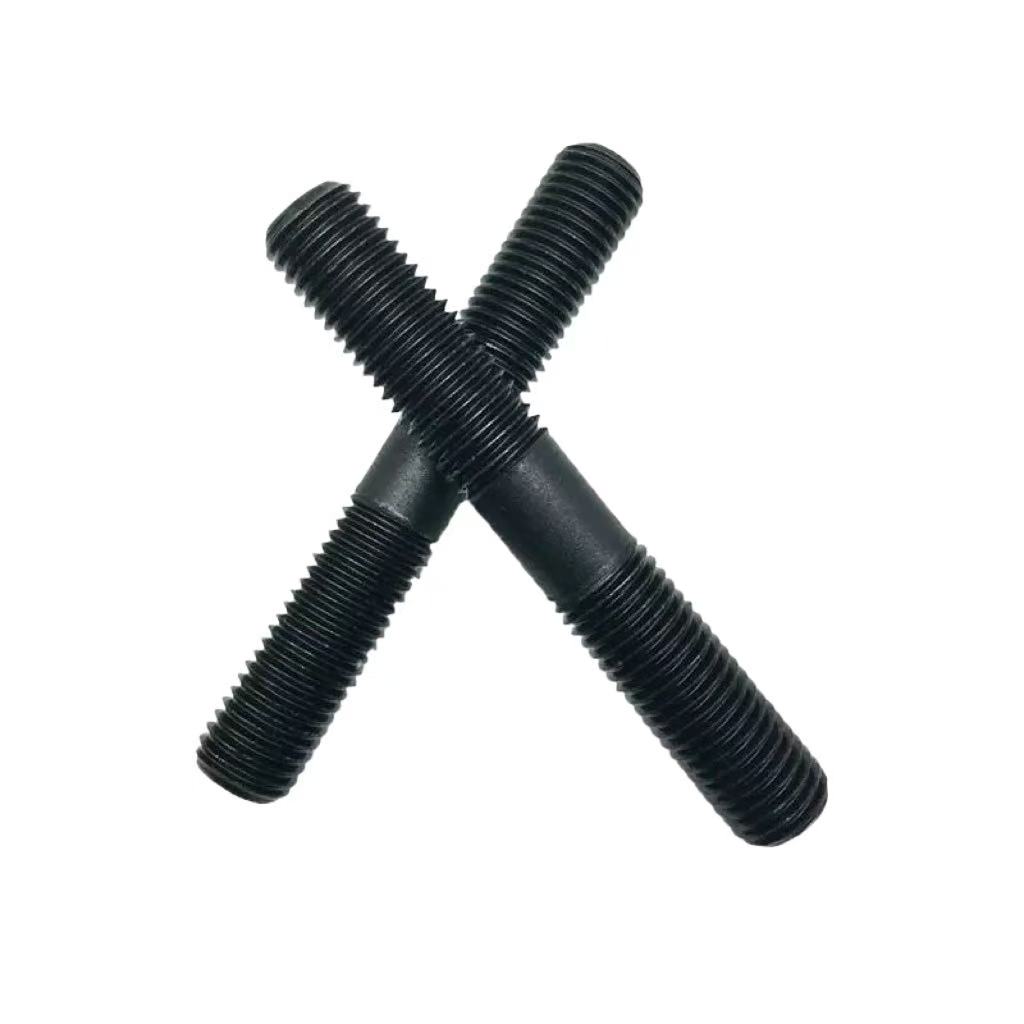

GB/T 901 is a Chinese national standard specifying equal-length double-ended studs (Grade B) , commonly called double-ended bolts or full-thread studs, a common fastener in mechanical connection. In terms of properties, it has equal-length threads at both ends and a smooth rod in the middle (divided into thick-rod Type A and thin-rod Type B) without a head. Common materials include Q235 carbon steel (Grade 4.8-6.8), 40Cr alloy steel (Grade 8.8-10.9) and 304 stainless steel. Its surface is treated with galvanizing, blackening, etc. The thread diameter ranges from M2 to M56, the length is customized on demand, and Grade B precision ensures interchangeability.
Its features include easy installation—no welding or pre-drilling required; both ends can be directly screwed into connectors to match nuts, suitable for space-constrained scenarios. The double-threaded sections transmit loads, with high tensile strength (Grade 10.9 reaches 1040MPa) and good vibration resistance. It replaces the bolt + nut combination, saving cost and time. Thick and thin rod types adapt to different load requirements, and stainless steel material is corrosion-resistant.
It is widely used:
Connecting gearboxes and bearing housings in machinery manufacturing; fixing high-pressure valves and flanges in power engineering; applied to steel structure joints in construction; assembling engine blocks and decks in automotive and marine industries; and 316 stainless steel can be used in special scenarios like oil drilling to resist corrosion.
| Screw Thread | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | |
| d | |||||||||||||
| P ① | Pitch | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| Weight of per 1000 steel products(≈kg) | - | ||||||||||||
| Length of Thread b | - | ||||||||||||
| Screw Thread | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | M48 | M56 | ||
| d | |||||||||||||
| P ① | Pitch | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 5 | 5.5 | |
| Weight of per 1000 steel products(≈kg) | - | ||||||||||||
| Length of Thread b | - | ||||||||||||
| ①,P = pitch of coarse thread. ②,diameter of the unthreaded shank ≈ pitch diameter of thread ③,Xmax = 1.5P | |||||||||||||
Shuojia supplies this item through qualified manufacturing partners. Quotations are issued only after the standard or drawing, material, grade, dimensions, finish, quantity, packing and inspection requirements are confirmed.
No fixed public price, universal MOQ or unverified performance claim is published for this product. Send the controlled specification for a written quotation.
